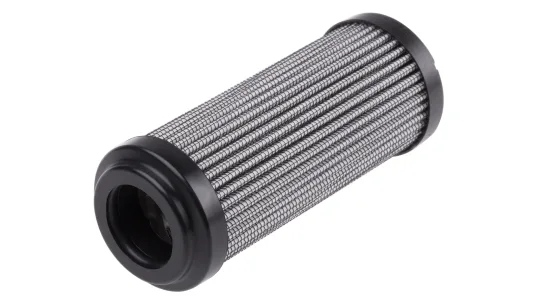

Replacement Parker Oil / Hydraulic Filters 930369Q 930370Q 930438Q

Warm Tips:

We can supply most of the manufacturers of filter accessories, complete model, the goods quickly, quality assurance.

Limited space, not one by one show, if demand, please contact, thank you!

Air filtration, liquid filtration, gas filtration, hydraulic oil filtration, petroleum filtration,
dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.

Housing	Filtration Fineness Absolute
	HPFE Glass Fibre ßX=75				Stainless Steel Mesh
	3 µm	6 µm	10 µm	20 µm	40 µm
	Code Element
MPN 40	LXW1-3	LXW1-6	LXW1-10	MXW1-20	LS1-40

* Please indicate the seal material at the end of the code element:
* B = BUNA (NBR) / N = NEOPRENE (CR) / V = VITON (FPM)

15P/30P Series Filters

Housing

Cellulose

Microglass III (HF4)

20 µm

10 µm

3 µm

20 µm

10 µm

5 µm

2 µm

10 µm
(140 Bar)

5 µm
(140 Bar)

2 µm
(140 Bar)

10 µm
(206 Bar)

2 µm
(206 Bar)

Code Element

15P-1

925576

925385

925578

930369Q

932612Q

932611Q

932610Q

932615Q

932614Q

932613Q

933577Q

933576Q

15P-2

925596

925394

925598

930370Q

932618Q

932617Q

932616Q

932621Q

932620Q

932619Q

933579Q

933578Q

30P/30PD-1

922625

922624

922923

933135Q

932624Q

932623Q

932622Q

932627Q

932626Q

932625Q

933581Q

933580Q

30P/30PD-2

925834

925835

925836

933136Q

932630Q

932629Q

932628Q

932633Q

932632Q

932631Q

933583Q

933582Q

MGS Series Filters

Housing	Filtration Fineness Absolute
	HPFE Glass Fibre ßX=75				Stainless Steel Mesh
	3 µm	6 µm	10 µm	20 µm	40 µm
	Code Element
MGS 50	GXW1-3	GXW1-6	GXW1-10	GXW1-20	GS1-40
MGS 100	GXW2-3	GXW2-6	GXW2-10	GXW2-20	GS2-40
MGS 150	GXW3-3	GXW3-6	GXW3-10	GXW3-20	GS3-40
MGS 250	GXW4-3	GXW4-6	GXW4-10	GXW4-20	GS4-40

* Please indicate the seal material at the end of the code element:
* B = BUNA (NBR) / N = NEOPRENE (CR) / V = VITON (FPM)

50P Series Filters

Housing	Cellulose			Microglass III (HF4)
	20 µm	10 µm	3 µm	20 µm	10 µm	5 µm	2 µm	20 µm (140 Bar)	10 µm (140 Bar)	5 µm (140 Bar)	2 µm (140 Bar)
	Code Element
50P-1	925773	925520	925772	931018Q	932670Q	932669Q	932668Q	930438Q	932676Q	932675Q	932674Q
50P-2	925793	925792	925791	932020Q	932679Q	932678Q	932677Q	931490Q	932685Q	932684Q	932683Q

100 Series Filters

Element Kit
Disposable — All Fluids (Except Phosphate Ester)
Length	3 µm abs.	6 µm abs.	10 µm abs.	20 µm abs.
1	170-Z-120	170-Z-121	170-Z-122	170-Z-123
2	170-Z-220	170-Z-221	170-Z-222	170-Z-223
Disposable — High Collapse (3000 psid)
Length	3 µm absolute		15 µm absolute
1	150-Z-1FF		150-Z-110
2	150-Z-2FF		150-Z-210
Cleanable — High Collapse (3000 psid)
Length	6 µm absolute		20 µm absolute
1	140-Z-101		140-Z-110
2	140-Z-201		140-Z-210
Cleanable — Corrosion Resistant Mesh
Length	40 µm absolute		75 µm absolute
1	190-Z-140		190-Z-175
2	190-Z-240		190-Z-275

200 Series Filters

Element Kit
Disposable — All Fluids (Except Phosphate Ester)
Length	3 µm abs.	6 µm abs.	10 µm abs.	20 µm abs.
1	270-Z-120	270-Z-121	270-Z-122	270-Z-123
2	270-Z-220	270-Z-221	270-Z-222	270-Z-223
Disposable — High Collapse (3000 psid)
Length	3 µm absolute		15 µm absolute
1	250-Z-1FF		250-Z-110
2	250-Z-2FF		250-Z-210
Cleanable — High Collapse (3000 psid)
Length	6 µm absolute		20 µm absolute
1	240-Z-101		240-Z-110
2	240-Z-201		240-Z-210
Cleanable — Corrosion Resistant Mesh
Length	40 µm absolute		75 µm absolute
1	290-Z-140		290-Z-175
2	290-Z-240		290-Z-275

300 Series Filters

Element Kit
Disposable — All Fluids (Except Phosphate Ester)
Length	3 µm abs.	6 µm abs.	10 µm abs.	20 µm abs.
1	370-Z-120	370-Z-121	370-Z-122	370-Z-123
2	370-Z-220	370-Z-221	370-Z-222	370-Z-223
3	370-Z-320	370-Z-321	370-Z-322	370-Z-323
Disposable — High Collapse (3000 psid)
Length	3 µm absolute		15 µm absolute
1	350-Z-1FF		350-Z-110
2	350-Z-2FF		350-Z-210
2	350-Z-3FF		350-Z-310
Cleanable — High Collapse (3000 psid)
Length	6 µm absolute		20 µm absolute
1	340-Z-101		340-Z-110
2	340-Z-201		340-Z-210
3	340-Z-301		340-Z-310
Cleanable — Corrosion Resistant Mesh
Length	40 µm absolute		75 µm absolute
1	390-Z-140		390-Z-175
2	390-Z-240		390-Z-275
3	390-Z-340		390-Z-375

1000 Series Filters

Element Kit
Disposable — All Fluids (Except Phosphate Ester)
Length	3 µm abs.	6 µm abs.	10 µm abs.	20 µm abs.
1	1070-Z-120	1070-Z-121	1070-Z-122	1070-Z-123
2	1070-Z-220	1070-Z-221	1070-Z-222	1070-Z-223
Disposable — High Collapse (3000 psid)
Length	3 µm absolute		15 µm absolute
1	1050-Z-1FF		1050-Z-110
2	1050-Z-2FF		1050-Z-210

SERVOSAVER Series Filters

Lenght	Betamaze
	3 µm - Buna	3 µm - FKM	15 µm - Buna	15 µm - FKM
	Code Element
1	R980H0403A	R980H0403H	R980H0415A	R980H0415H
2	R980H0803A	R980H0803H	R980H0815A	R980H0815H
